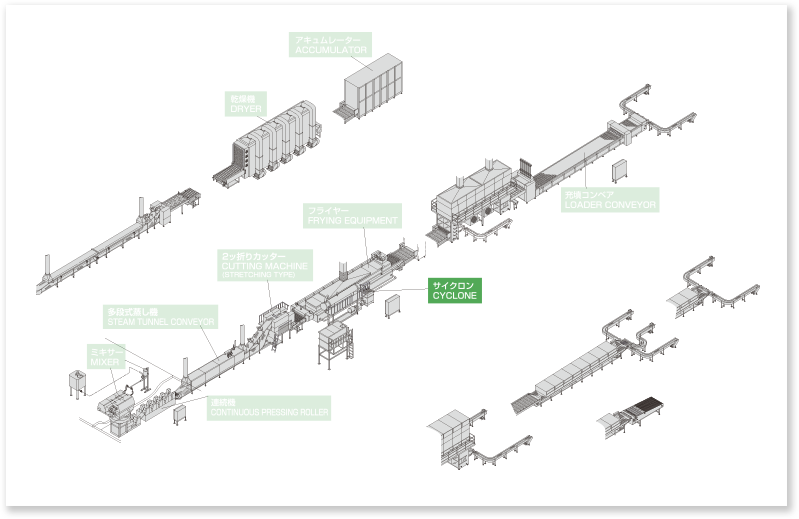

Cyclone Noodle Chips Separator (Cyclone) is equipped in
Fryer for instant noodle processing line in order to
separate noodle chips and other foreign particles from
frying oil.

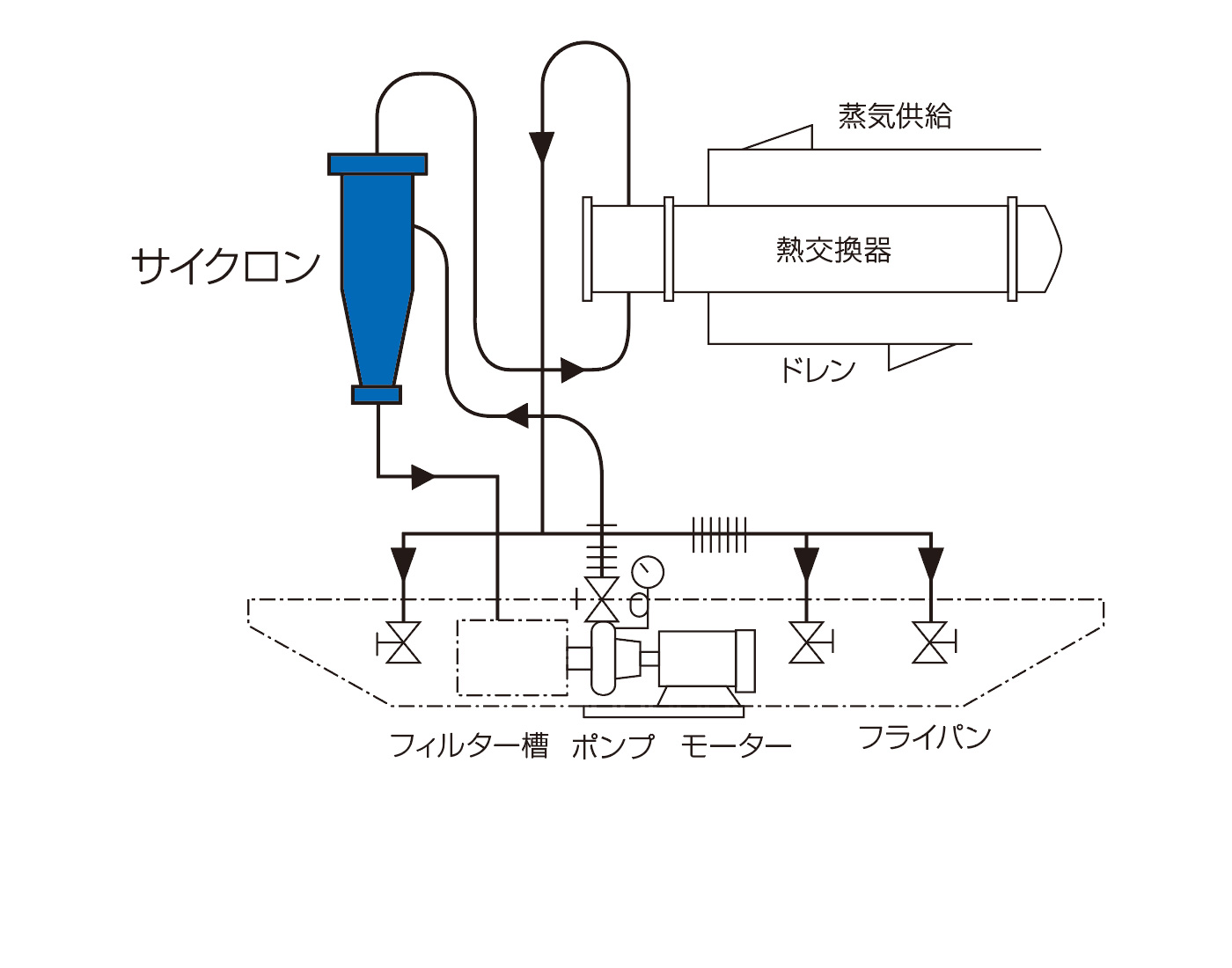

Frying oil is fed from frying pan to Cyclone through oil strainer tank by oil circulating pump and power is not required to drive Cyclone.
At the inside of Cyclone, oil supply pressure of the circulating pump brings about rotary motion of frying oil and the noodle chips in frying oil is pressed against the wall of the main body by centrifugal force.
Frying oil at the center of the body which the noodle chips are separated, is discharged to the upper part, and sent to heat exchanger.Separated noodle chips sink gradually to the bottom part. It shall be discharged or put back to collecting net of oil strainer tank.
By using Cyclone, minimal noodle chips and other foreignparticles which could not be caught before, can be collected. This brings better efficiency of heat exchange in heat exchanger due to less clogging of the tubes.
Also, because of cleaner frying oil, sticking of noodle chips onto the product will be decreased. Running cost will not be increased.
